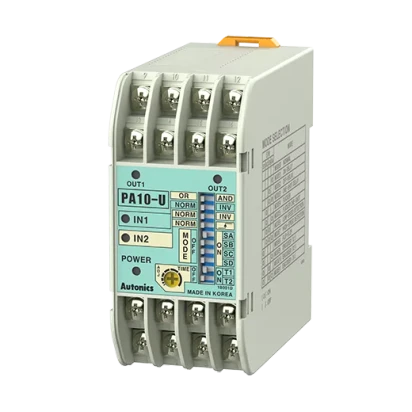

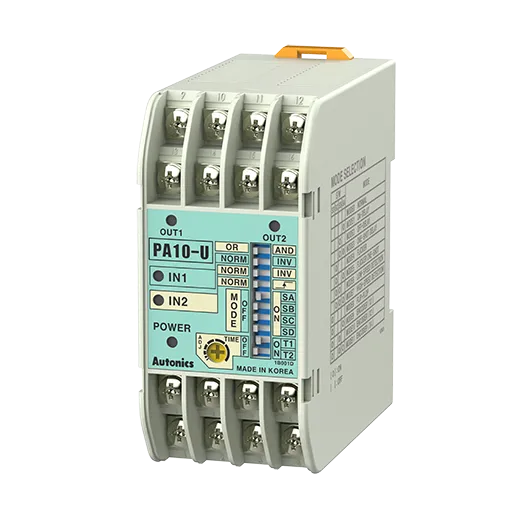

Autonics PA10 Series PA10-U

List Price:

$103.00

/each

Product Description

Autonics Sensor Controllers, model PA10-U, from the PA10 Series product line.

Input logic: NPN open collector
Number Of Connected Sensors: 2 units
Power for external sensor: 12VDC @(=)(approx. 200mA)
Power supply: 100-240VAC~ 50/60Hz
Power consumption: Max.10VA
Input Operation: Input signal reverse, OR/AND, IN2 derivative action
Operation mode: 11(ON delay mode, OFF delay mode, one-shot delay mode, fl icker mode, fl icker one-shot mode, low-speed detection mode, high-speed detection mode, ON/OFF delay mode, normAl mode, fl ip-fl op mode, encoder mode)
Control output: Relay SPDT(1c): 1, NPN open collector: 2
Ambient temperature: 10 to 55℃
Power for external sensor: 12VDC @(=) ±10% Approx. 200mA
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 150g

Write a Review

Brand:

Autonics Sensor Controllers, model PA10-U, from the PA10 Series product line.

Input logic: NPN open collector
Number Of Connected Sensors: 2 units
Power for external sensor: 12VDC @(=)(approx. 200mA)
Power supply: 100-240VAC~ 50/60Hz
Power consumption: Max.10VA
Input Operation: Input signal reverse, OR/AND, IN2 derivative action
Operation mode: 11(ON delay mode, OFF delay mode, one-shot delay mode, fl icker mode, fl icker one-shot mode, low-speed detection mode, high-speed detection mode, ON/OFF delay mode, normAl mode, fl ip-fl op mode, encoder mode)
Control output: Relay SPDT(1c): 1, NPN open collector: 2
Ambient temperature: 10 to 55℃
Power for external sensor: 12VDC @(=) ±10% Approx. 200mA
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 150g
