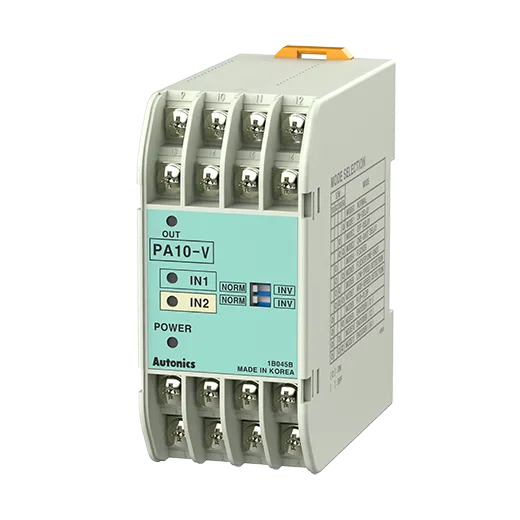

Autonics PA10 Series PA10-V
Part Number #
AUT1054219

Autonics PA10 Series PA10-V

List Price:
$86.00
/each
Product Description

Autonics Sensor Controllers, model PA10-V, from the PA10 Series product line.

Specifications

  • Input logic: NPN open collector&NPN universal
  • Number Of Connected Sensors: 2 units
  • Power for external sensor: 12VDC @(=)(approx. 200mA)
  • Power supply: 100-240VAC~ 50/60Hz
  • Power consumption: Max.10VA
  • Input Operation: Input signal reverse, AND operation
  • Operation mode: -
  • Control output: Relay SPDT(1c): 1, NPN open collector: 1
  • Ambient temperature: 10 to 55℃
  • Power for external sensor: 12VDC @(=) ±10% Approx. 200mA
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
  • Weight: Approx. 150g

Downloadable Materials

Write a Review
  • CAD Model
  • Specifications
Brand:

Autonics Sensor Controllers, model PA10-V, from the PA10 Series product line.

Specifications

  • Input logic: NPN open collector&NPN universal
  • Number Of Connected Sensors: 2 units
  • Power for external sensor: 12VDC @(=)(approx. 200mA)
  • Power supply: 100-240VAC~ 50/60Hz
  • Power consumption: Max.10VA
  • Input Operation: Input signal reverse, AND operation
  • Operation mode: -
  • Control output: Relay SPDT(1c): 1, NPN open collector: 1
  • Ambient temperature: 10 to 55℃
  • Power for external sensor: 12VDC @(=) ±10% Approx. 200mA
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
  • Weight: Approx. 150g
