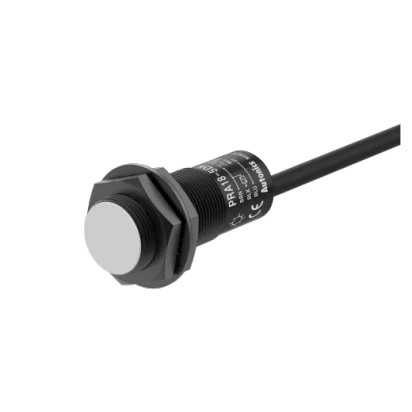

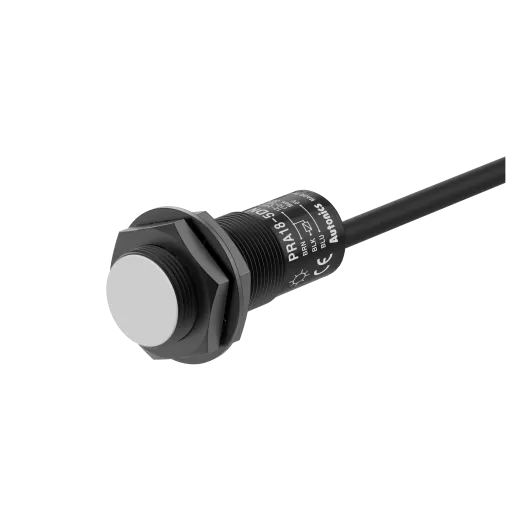

Autonics PR Series PRAT18-5DC

Autonics PR Series PRAT18-5DC

Part Number #

AUT1049961

Autonics PR Series PRAT18-5DC

List Price:

$100.00

/each

Product Description

Autonics Inductive Proximity Sensors, model PRAT18-5DC, from the PR Series product line.

Specifications

Wire type and power: DC 2-wire type 12-24VDC @(=)
Sensing side diameter: M18
Sensing distance: 5mm
Installation: Flush
Standard sensing target: 18×18×1mm(iron)
Response frequency: 500Hz
Current specification: Leakage current: Max. 0.6mA
Control output: Normally Closed
Material: Brass(teflon coated)
Cable Standard/material: Standard cable
Protection structure: IP67(IEC standard)
Non-polarity: -
Body length: Standard type
Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance): Max. 10% of sensing distance
Residual voltage: Max. 3.5V
Insulation type: -
Weight: Approx. 122g(approx. 110g)
