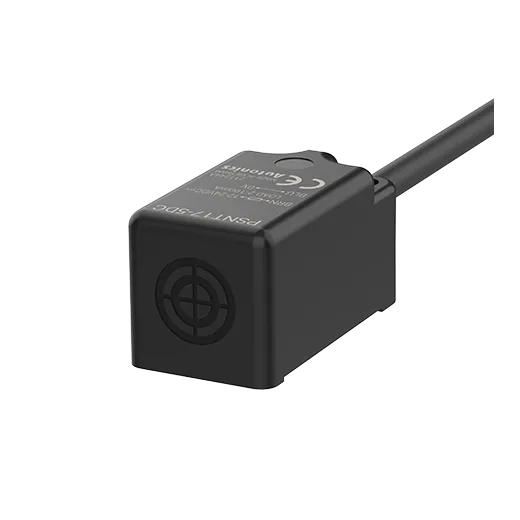

Autonics PS Series PSNT17-5DC

Autonics PS Series PSNT17-5DC

Part Number #

AUT1047625

Autonics PS Series PSNT17-5DC

List Price:

$24.00

/each

Product Description

Autonics Sockets, model PSNT17-5DC, from the PS Series product line.

Specifications

Wire type and power: DC 2-wire type 12-24VDC @(=)
Sensing side size: Frame size 17mm
Sensing distance: 5mm
Standard sensing target: 18×18×1mm(iron)
Response frequency: 700Hz
Current specification: Leakage current: Max. 0.6mA
Control output: Normally Closed
Sensing type: Standard type(front sensing type)
Material: Polybutylene terephthalate
Protection structure: IP67
Different frequency: -
Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance): Max. 10% of sensing distance
Weight: ≈ 58g (≈ 79g)

Downloadable Materials
