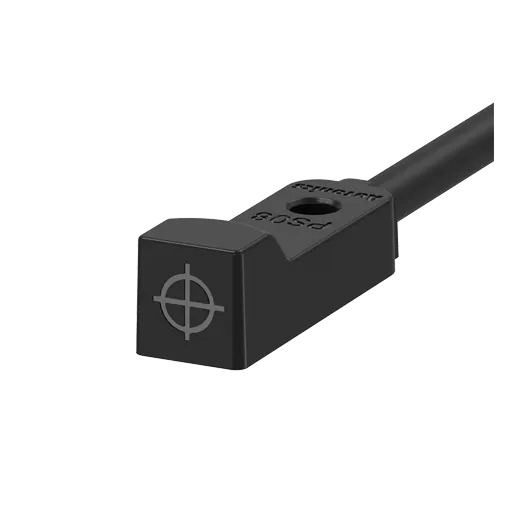

Autonics PS Series PS08-2.5DN2U

Autonics PS Series PS08-2.5DN2U

Part Number #

AUT1049834

Autonics PS Series PS08-2.5DN2U

List Price:

$62.00

/each

Product Description

Autonics Sockets, model PS08-2.5DN2U, from the PS Series product line.

Specifications

Wire type and power: DC 3-wire type 12-24VDC @(=)
Sensing side size: Frame size 8mm
Sensing distance: 2.5mm
Standard sensing target: 8×8×1mm(iron)
Response frequency: 1kHz
Current specification: Current consumption: Max. 10mA
Control output: NPN Normally Closed
Sensing type: Upper sensing type
Material: Polycarbonate
Protection structure: IP67(IEC standard)
Different frequency: -
Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance): Max. 20% at sensing distance
Weight: ≈ 16 g (≈ 30 g)
