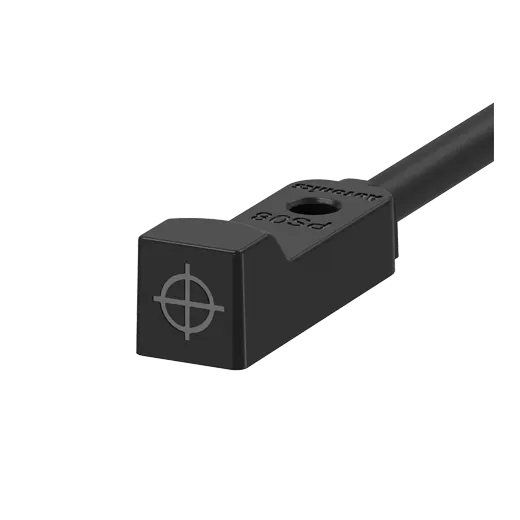

Autonics PS Series PS08-2.5DP2
Part Number #
AUT1049831

Autonics PS Series PS08-2.5DP2

List Price:
$62.00
/each
Product Description

Autonics Sockets, model PS08-2.5DP2, from the PS Series product line.

Specifications

  • Wire type and power: DC 3-wire type 12-24VDC @(=)
  • Sensing side size: Frame size 8mm
  • Sensing distance: 2.5mm
  • Standard sensing target: 8×8×1mm(iron)
  • Response frequency: 1kHz
  • Current specification: Current consumption: Max. 10mA
  • Control output: PNP Normally Closed
  • Sensing type: Standard type(front sensing type)
  • Material: Polycarbonate
  • Protection structure: IP67(IEC standard)
  • Different frequency: -
  • Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
  • Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
  • Hysteresis(distance): Max. 20% at sensing distance
  • Weight: ≈ 16 g (≈ 30 g)

Downloadable Materials
