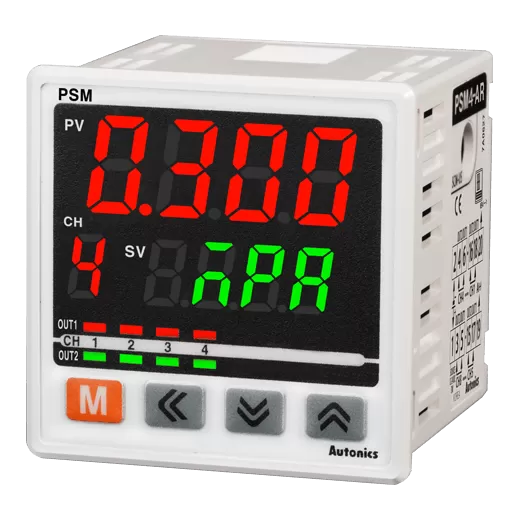

Autonics Pressure Sensors, model PSM4-AR, from the PSM Series product line.
Specifications
- Display pressure range: Depending on pressure type, pressure unit (refer to '▣ Rated Pressure and Max. Display Pressure Range')
- Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
- Power consumption: Max. 3W
- Current consumption: Max. 100mA (adds 20mA for RS485 communication.)
- Number of input channels: 4 EA
- Input method: DC4-20mA
- Power for external sensor: 12-24VDC @(=), 40mA for each channel (max. current of 1-4CH: max. 100mA, max. current of 5-8CH: max. 100mA)
- Control output_Hysteresis: Min. display interval
- Control output_Repeat error: ±0.1% F.S. ±min. display interval
- Control output_Response time: 2.5ms, 100ms, 500ms, 1000ms
- Control output_Protection circuits: Output short over current protection, reverse power polarity protection circuit
- Display digit: PV display part, SV display part: 4-digit, channel display part: 1-digit
- Display method_Display part: 7-segment LED method </br>ᆞPV display part: red or green ᆞSV display part: green ᆞChannel display part: red
- Display method_Output indicator: 8 (OUT1, OUT2: 4 for each)
- Display accuracy: ±0.1% ±2-digit (at 23 ±5℃)
- Control output and display temperature: 0 to 50℃: ±0.2% F.S. ±2-digit (based on 25℃), -10 to 0℃: ±0.3% F.S. ±2-digit
- Digital inputs: -
- Communication: RS485 communication output(Modbus RTU)
- Connection_Input: Sensor connector (for CNE-P04, sold separately) terminal
- Connection_Output: Hirose connector 20-pin (HIF3BA-20D-2.54R, flat cable 20-wire, sold separately) terminal
- Insulation resistance: 100MΩ or more (500VDC megger basis)
- Dielectric strength: 1,000VAC 50/60Hz for 1 min (between power terminal and case), 500VAC 50/60Hz for 1 min (between power terminal and RS485 terminal)
- Vibration: 1.5mm amplitude at frequency of 10 to 50Hzin each X, Y, Z direction for 2 hours
- Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
- Environment_Ambient humidity: 30 to 85%RH, storage: 30 to 85%RH
- Accessories: Bracket
- Weight: Approx. 108g (approx. 65g)
