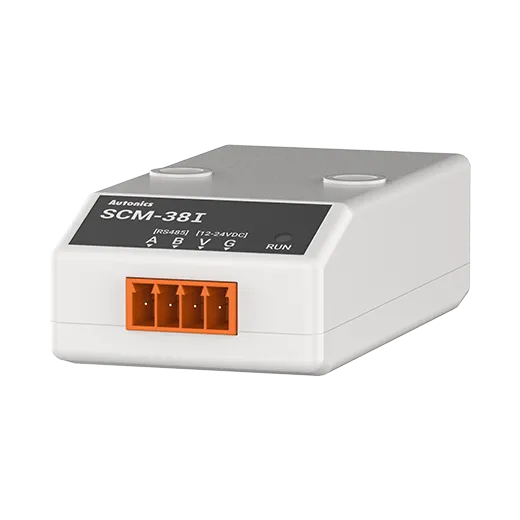

Autonics SCM Series SCM-38I

List Price:

$154.00

/each

Product Description

Autonics Network Converters, model SCM-38I, from the SCM Series product line.

Converting Signal: RS232C ↔ RS485
Available communication distance: RS485: Max. 1.2km
Insulation type: Isolation
Connection method: RS232C: D-sub 9-pin</br>RS485: 4-wire screw terminal</br>(2-wire communication method)
Power supply: 12-24VDC @(=)
Protection structure: -
Communication speed: 1,200 to 115,200bps (recommended: 9,600bps)
Communication type: Half duplex type
Multi-drop: Max. 31 multi-drop
Accessories: -
Environment_Ambient temperature: -10 to 55℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 46g
