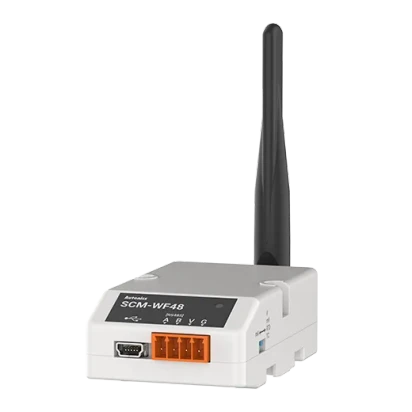

Autonics SCM Series SCM-WF48

List Price:

$364.00

/each

Product Description

Autonics Network Converters, model SCM-WF48, from the SCM Series product line.

Converting Signal: Wi-Fi ↔ RS485·USB
Available communication distance: Wi-Fi: Max. 100mRS485: Max. 800mUSB: Max. 1m ± 30%
Insulation type: Non-isolation
Connection method: Wi-Fi: TCP/IP (IPv4)RS485: 4-wire screw terminal(2-wire communication method)USB: USB 2.0 Mini B type (male)
Power supply: 24VDC @(=)
Protection structure: IP20
Accessories: USB 2.0 Mini B type cable (length: 1m): 1Connector for RS-485 (4-pin, male type): 1
Environment_Ambient temperature: -10 to 55℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 80%RH, storage: 35 to 80%RH
Weight: Approx. 160g (approx. 57g)
