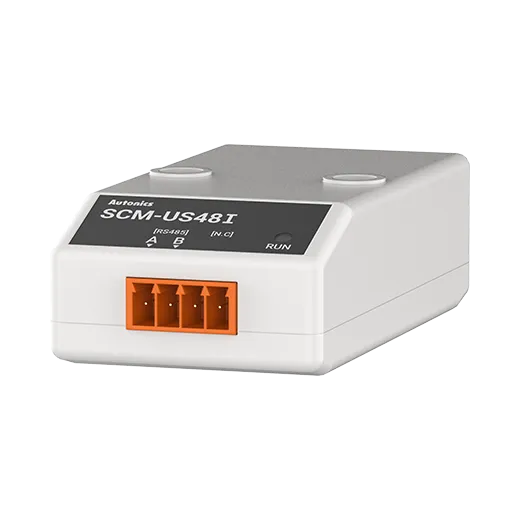

Autonics SCM Series SCM-US48I

List Price:

$154.00

/each

Product Description

Autonics Network Converters, model SCM-US48I, from the SCM Series product line.

Converting Signal: USB ↔ RS485
Available communication distance: USB: Max. 1m ± 30%RS485: Max. 1.2km
Insulation type: Isolation
Connection method: USB: USB 2.0 B type (male)RS485: 4-wire screw terminal(2-wire communication method)
Power supply: 5VDC USB bus power
Protection structure: -
Communication speed: 1,200 to 115,200bps (recommended: 9,600bps)
Communication type: Half duplex type
Multi-drop: Max. 31 multi-drop
Accessories: USB 2.0 AB type connector(length: 1m)
Environment_Ambient temperature: -10 to 55℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 34.5g
