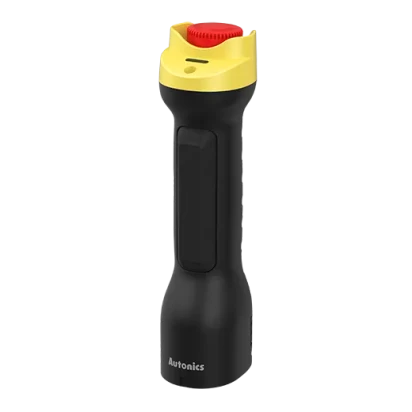

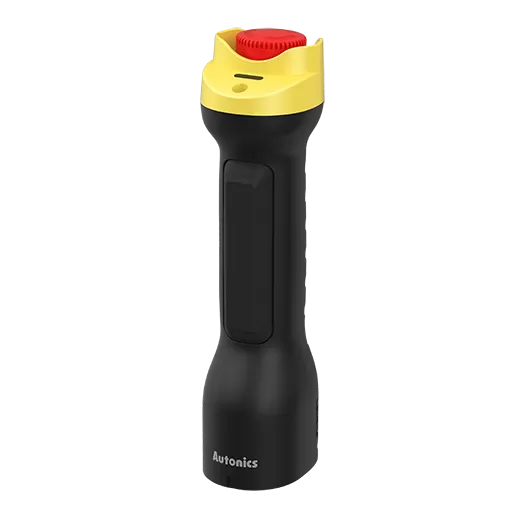

Autonics Safety Switches, model SFEN-B, from the SFEN Series product line.
Specifications
- Rated Insulation Voltage: 250 VAC~
- Rated through current: 3A
- Rated inductive load: -
- Rated resistive load: AC-12 (3 A / 250 VAC~), DC-12 (3 A / 30 VDC@(=))
- Controller strength: Operation direction: 400 N, for 1 min (operation direction: 0.5 N m, for 1 min)
- Operating frequency: Electrical: ≤ 10 / min, Machanical: ≤ 10 / min
- Dielectric strength: Between terminals of same polarity: 1,000 VAC~ 50 / 60 Hz for 1 min. between terminals of different polarity, between terminal and non-live part : 2,000 VAC~ 50 / 60 Hz for 1 min.
- Life cycle_Electrical: ≥ 100,000 operations (rated load) (Push / Release 1 time)
- Life cycle_Mechanical: ≥ 100,000 operations (Push / Release 1 time)
- Conditional short circuit current: 100A
- Min. applied load: DC24 V 4 mA
- Directing opening force: 30 N ± 10
- Directing opening distance: 4.8 mm ± 0.5
- Insulation resistance: ≥ 100 MΩ (500 VDC@(=) megger)
- Vibration_Malfunction: 1.5mm double amplitude at frequency of 10 to 55 Hzin each X, Y, Z direction for 10 minutes
- Shock_Malfunction: 150 m/s² (≈ 15 G) in each X, Y, Z direction for 3 times
- Environment_Ambient temperature: -10 to 55 ℃, storage: -25 to 65 ℃ (no freezing or condensation)
- Environment_Ambient humidity: 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation)
- Insulation class: Class ll (double insulation)
- Indicator: Enable operation indicator (green)
- Protection structure: IP65(IEC standard)
- Applicable cable: AWG 20-18 (0.5 to 0.75mm²)
- Connection Type: M20 connector cable grand
- Material: Cover: PA66, button: PC, rubber grip: Silicone
- International standards: IEC 60947-5-1, IEC 60947-5-8, UL 60947-5-1
- Weight: ≈ 268 g (≈ 388 g)
