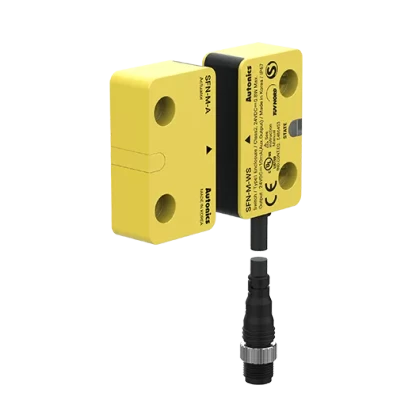

Autonics SFN Series SFN-M-W

List Price:

$115.00

/each

Product Description

Autonics Safety Door Switches, model SFN-M-W, from the SFN Series product line.

Operation distance_OFF→ON: ≥ 5 mm
Operation distance_ON→OFF: ≤ 15 mm
Weight: Approx. 58.1g(approx. 71.6g)
Power supply: 24VDC@(=)±10%
Operating frequency: 100Hz
Power consumption: ≤ 400mA
Sub output: PNP open collector output - 24 VDC, 10 mA
Operation indicator: ON: green, OFF: red
Life expectancy: ≥ 20,000,000 times (with low load)
Insulation resistance: ≥ 50 MΩ (500 VDC@(=) megger)
Protection circuit: Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit
Dielectric strength: 1,500 VAC~ 50/60Hz for 1 minute
Vibration: 1.0 mm amplitude at frequency of 10 to 55 Hzin each X, Y, Z direction for 2 hours
Vibration_Malfunction: 1.0 mm amplitude at frequency of 10 to 55 Hzin each X, Y, Z direction for 10 min
Shock: 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
Shock_Malfunction: 300m/s² (approx. 30G) in each X, Y, Z direction in output ON/OFF status for 3 times
Ambient temperature: -10 to 55℃, storage: -20 to 60℃
Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP67(IEC standard)
Connection: Cable connector type
Connector type: M12 Connector
Material: Body/CAP: PC
