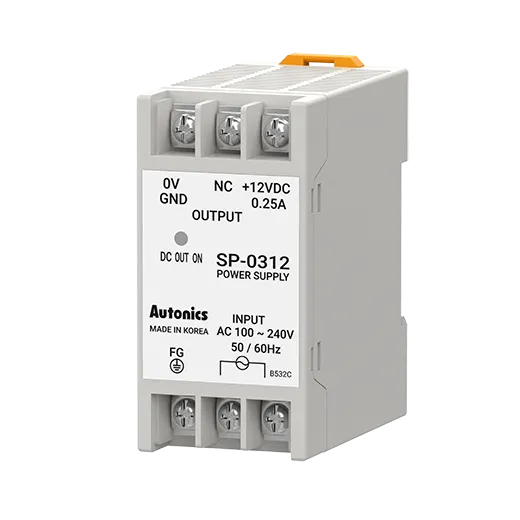

Autonics SP Series SP-0312

Autonics SP Series SP-0312

Part Number #

AUT1054253

Autonics SP Series SP-0312

List Price:

$67.00

/each

Product Description

Autonics Smps, model SP-0312, from the SP Series product line.

Specifications

Output power: 3W
Input Voltage: 100-240VAC~ 50/60Hz
Permissible voltage: 85-264VAC~50/60Hz
Output_Voltage: 12VDC @(=)
Output_Current: 0.25A
Mounting type: DIN Rail/Using Bolts
Protection: Over-Current/Output Short-Circuit
Input_Frequency: 50/60Hz
Input_Efficiency: 67~74%
Input_Current consumption: Max. 0.15A
Output type_Voltage adjustment range: Max. ±5%
Output type_Ripple: Max. 5%
Output type_Voltage fluctuation ratio: Max. 0.5% (at 85-264VAC~ 100% load)
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 70℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 100g

Downloadable Materials
