Autonics SPA Series SPA-100-05

Autonics SPA Series SPA-100-05

Part Number #

AUT1054235

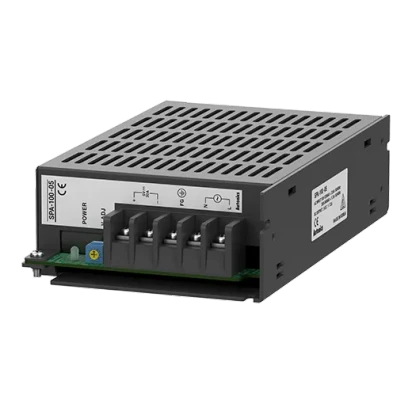

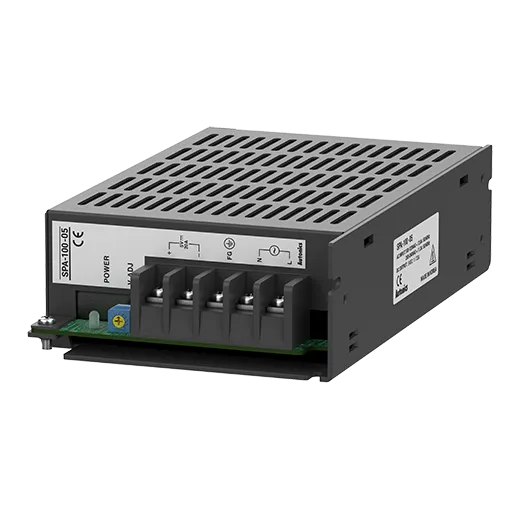

Autonics SPA Series SPA-100-05

List Price:

$170.00

/each

Product Description

Autonics Smps, model SPA-100-05, from the SPA Series product line.

Specifications

Output power: 100W
Input Voltage: 100-120/200-240VAC~50/60Hz~
Permissible voltage: 85-132/170-264VAC~50/60Hz
Output_Voltage: 5VDC @(=)
Output_Current: 20A
Mounting type: Using Bolts
Protection: Over-Current,Over-Voltage,Inrush Current,Output Short-Circuit
Input_Frequency: 50/60Hz
Input_Efficiency: Min. 70%
Input_Current consumption: Max. 3.0A
Output type_Voltage adjustment range: ±5%
Output type_Input fluctuation ratio: Max. ±0.5%
Output type_Load fluctuation ratio: Max. ±2%
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 70℃
Environment_Ambient humidity: 25 to 85%RH, storage: 25 to 90%RH
Weight: Approx. 400g

Downloadable Materials
