Autonics THD Series THD-R-C

List Price:

$227.00

/each

Product Description

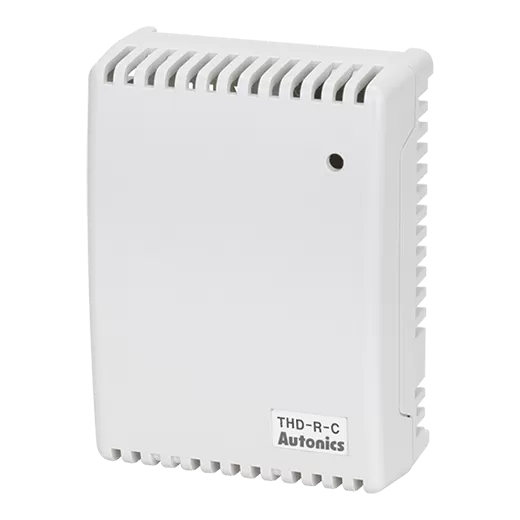

Autonics Temperature Sensors, model THD-R-C, from the THD Series product line.

Display method: Non-display
Measured range_Temperature: -19.9~60.0℃
Measured range_Humidity: 0.0 to 99.9%RH(recommended: 0.0 to 90.0%)
Output_Temperature: Current output(DC4-20mA)
Output_Humidity: Current output(DC4-20mA)
Sampling cycle: 500ms
Length of sensor pole: -
Power supply: 24VDC @(=)
Protection structure: IP10
Accuracy_Temperature: ±1.0℃(at room temperature)
Accuracy_Humidity: ±3%RH(30 to 70%RH, at room temp.),</br>±4%RH(10 to 90%RH)
Resolution: 1/1000
Environment_Ambient temperature: -20 to 60℃, storage: -20 to 60℃
Weight: Approx. 98g(approx. 55g)

Write a Review

Brand:

Autonics Temperature Sensors, model THD-R-C, from the THD Series product line.

Display method: Non-display
Measured range_Temperature: -19.9~60.0℃
Measured range_Humidity: 0.0 to 99.9%RH(recommended: 0.0 to 90.0%)
Output_Temperature: Current output(DC4-20mA)
Output_Humidity: Current output(DC4-20mA)
Sampling cycle: 500ms
Length of sensor pole: -
Power supply: 24VDC @(=)
Protection structure: IP10
Accuracy_Temperature: ±1.0℃(at room temperature)
Accuracy_Humidity: ±3%RH(30 to 70%RH, at room temp.),</br>±4%RH(10 to 90%RH)
Resolution: 1/1000
Environment_Ambient temperature: -20 to 60℃, storage: -20 to 60℃
Weight: Approx. 98g(approx. 55g)
