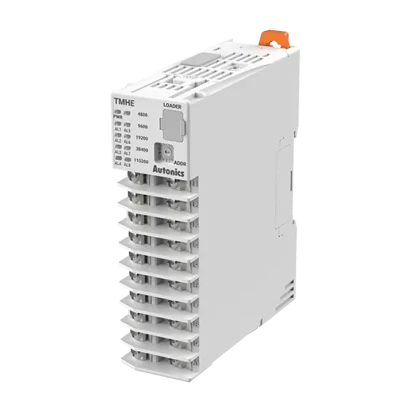

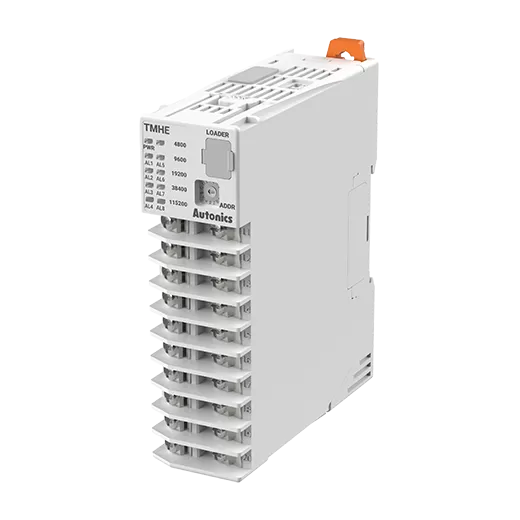

Autonics TMH Series TMHCT-82NE

List Price:

$320.00

/each

Product Description

Autonics Temperature Controllers, model TMHCT-82NE, from the TMH Series product line.

No. of channel: 8-point
Sampling cycle: -
Input type_TC: -
Input type_RTD: -
Input type_Analog: -
Input type_CT: 0.0-50.0A(primary current measurement range) ※CT ratio=1/1000
Input type_Digital inputs: -
Output_Alarm: -
Communication: Modbus RTU
Insulation type: -
Unit weight (packaged weight): ≈ 148 g (≈ 221 g)
Power supply: 24VDC @(=)
Allowable voltage range: 90 to 110% of rated voltage
Power consumption: Max. 5W(for max. load)
Display method: None-parameter setting and monitoring is available at external devices(PC, PLC, etc.)
Memory Protection: ≈ 10 years (non-volatile semiconductor memory type)
Insulation resistance: 100MΩ(at 500VDC megger)
Dielectric strength: Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute
Vibration: 0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours
Noise immunity: ±0.5kV the square wave noise (pulse width: 1㎲) by the noise simulator
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP20(IEC standard)
