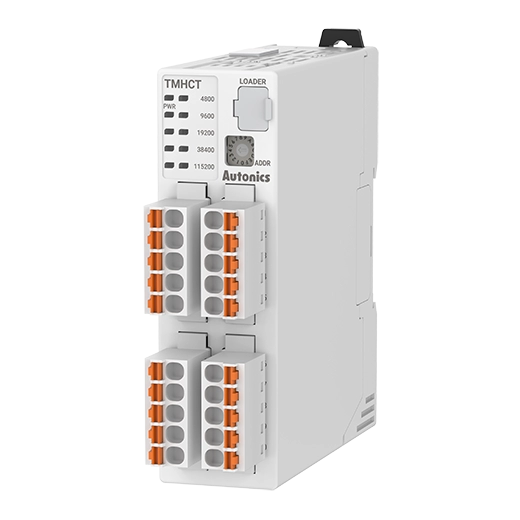

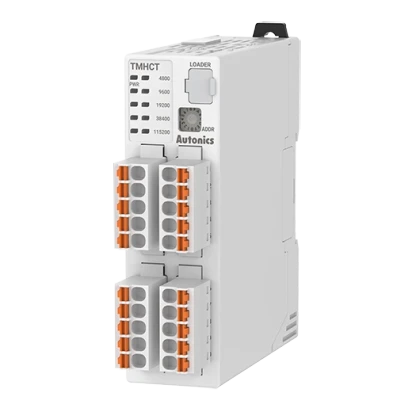

Autonics TMH Series TMHCT-82N-L

List Price:

$321.00

/each

Product Description

Autonics Temperature Controllers, model TMHCT-82N-L, from the TMH Series product line.

I/O points: 8-point
Input type_CT: 0.0-50.0A(primary current measurement range) ※CT ratio=1/1000, Measured accuracy: ±5% F.S. ±1-digit
Input type_Digital inputs: -
Alarm output: -
Communication: Modbus RTU
Insulation type: -
Unit weight (packaged weight): ≈ 133 g (≈ 232 g)
Power supply: 24VDC @(=)
Allowable voltage range: 90 to 110% of rated voltage
Power consumption: Max. 5W(for max. load)
Display method: None-parameter setting and monitoring is available at external devices(PC, PLC, etc.)
Memory Protection: ≈ 10 years (non-volatile semiconductor memory type)
Insulation resistance: 100MΩ(at 500VDC megger)
Dielectric strength: Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute
Vibration: 0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours
Noise immunity: ±0.5kV the square wave noise (pulse width: 1㎲) by the noise simulator
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP20(IEC standard)
