Autonics ABS Series ABS-HC16TN-NN
Part Number #
AUT1052663

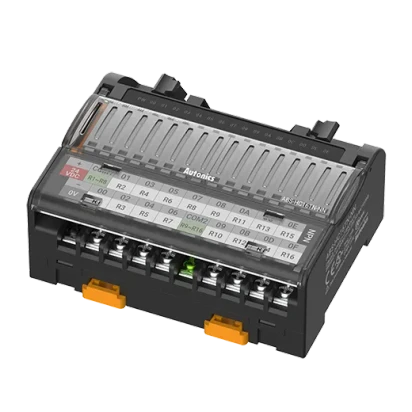

Autonics ABS Series ABS-HC16TN-NN

List Price:
$312.00
/each
Product Description

Autonics I/o Terminal Blocks, model ABS-HC16TN-NN, from the ABS Series product line.

Specifications

  • Applied relay: NYP24W-K[TAKAMISAWA(Fujitsu)]
  • Rated voltage: ≤ 24 VDC@(=)±10 %
  • Current consumption: ≤ 7.8 mA or ≤ 10.5 mA
  • Number of connector pins: 20
  • Number of relay points: 16
  • Terminal type: Screw
  • Terminal pitch: 7.62 mm
  • Indicator: Power indicator: red, operating indicator: blue
  • Applicable cable_Solid wire: Ø 0.3 to Ø 1.2 mm
  • Applicable cable_Stranded wire: AWG 22-16 (0.30 to 1.25 mm²)
  • Insulation resistance: ≥1,000MΩ (at 500VDC megger)
  • Dielectric strength_Between coil-contacts: 3,000VAC 50/60Hz for 1 minute
  • Dielectric strength_Between same contacts: 750VAC 50/60Hz for 1 minute
  • Environment_Ambient temperature: -15 to 55℃, storage: -25 to 65℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
  • Material: CASE, BASE, COVER: PC</br>terminal pin: brass, Ni-plating
  • Protection structure: -
  • Weight: ≈ 185 g (≈ 232 g)
