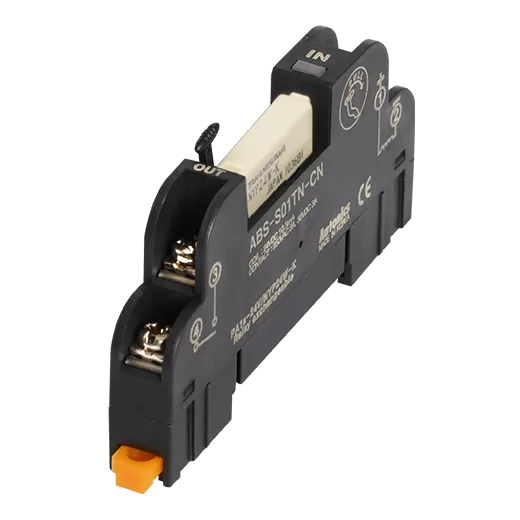

Autonics ABS Series ABS-S01TN-CN
Part Number #
AUT1052661

Autonics ABS Series ABS-S01TN-CN

List Price:
$20.00
/each
Product Description

Autonics I/o Terminal Blocks, model ABS-S01TN-CN, from the ABS Series product line.

Specifications

  • Rated voltage: 24VDC @(=) ±10%
  • Rated load voltage & current: 250VAC~ 3A, 30VDC @(=) 3A
  • Current consumption: ≤8.5mA
  • Applied relay: NYP24W-K[TAKAMISAWA(Fujitsu)]
  • Number of relay points: 1-point
  • Number of connector pins: -
  • Indicator: Operation indicator: Blue LED
  • Applicable cable: AWG22-16(0.30 to 1.25mm²)
  • Insulation resistance: ≥1,000MΩ (at 500VDC megger)
  • Dielectric strength_Between coil-contacts: 2,000VAC 50/60Hz for 1 minute
  • Dielectric strength_Between same contacts: 750VAC 50/60Hz for 1 minute
  • Environment_Ambient temperature: -15 to 55℃, storage: -25 to 65℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
  • Material: CASE & BASE: PA6, TERMINAL PIN: Brass
  • Accessories: -
  • Weight: Approx. 324.5g(approx. 22.2g)

Downloadable Materials
