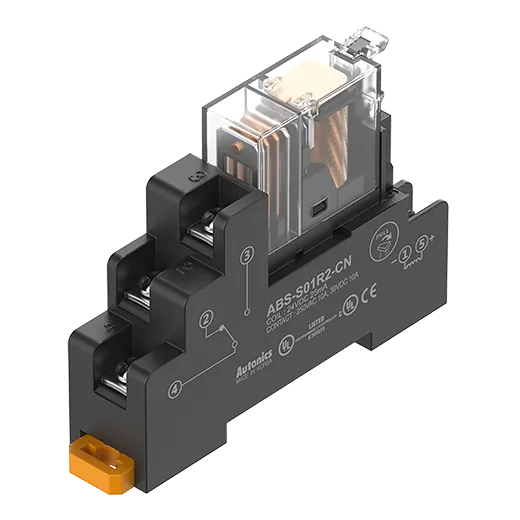

Autonics ABS Series ABS-S01R2-CN
Part Number #
AUT1052662

Autonics ABS Series ABS-S01R2-CN

List Price:
$35.00
/each
Product Description

Autonics I/o Terminal Blocks, model ABS-S01R2-CN, from the ABS Series product line.

Specifications

  • Rated voltage: 24VDC @(=)
  • Rated load voltage & current: 250VAC~ 10A, 30VDC @(=) 10A
  • Current consumption: ≤25mA
  • Applied relay: G2R-1-S24VDC [OMRON]
  • Number of relay points: 1-point
  • Number of connector pins: -
  • Indicator: Operation indicator: Blue LED
  • Applicable cable: AWG17 to 14(1.0 to 2.0mm²)
  • Insulation resistance: ≥1,000MΩ (at 500VDC megger)
  • Dielectric strength_Between coil-contacts: 5,000VAC 50/60Hz for 1 minute
  • Dielectric strength_Between same contacts: 1,000VAC 50/60Hz for 1 minute
  • Environment_Ambient temperature: -15 to 55℃, storage: -25 to 65℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
  • Material: CASE, BASE: PBT, TERMINAL PIN: Brass, Phosphor bronze
  • Accessories: -
  • Weight: Approx. 719g(approx. 53g)
