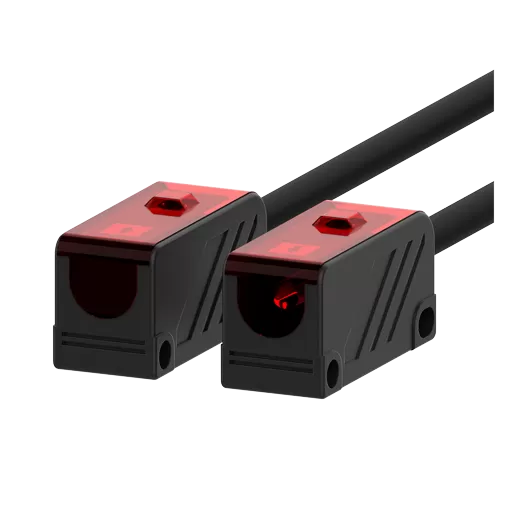

Autonics BY Series BY500-TDT1,2

List Price:

$56.00

/each

Product Description

Autonics Photoelectric Sensors, model BY500-TDT1,2, from the BY Series product line.

Sensing type: Through-beam type(standard type)
Sensing distance: 500mm
Sensing target: Opaque material of min. Ø5mm
Response time: Max. 1ms
Light source: Infrared LED(940nm)
Sensitivity adjustment: -
Timer function: -
Operation mode: Dark ON
Weight: ≈ 150 g (≈ 200 g)
Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption: Emitter/Receiver: Max. 30mA
Control output: NPN open collector
Environment_Ambient illumination: Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature: -10 to 60℃, storage: -25 to 70℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP50
Connection type: Cable type(Ø4, 2m)
Material: Case: PC, sensing part: PC, bracket: SPCC, bolt: SCM, nut: SCM
