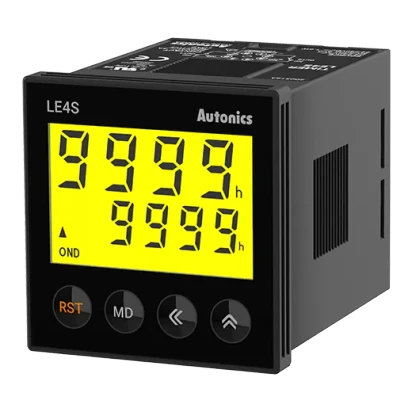

Autonics LE4S Series LE4S

List Price:

$107.00

/each

Product Description

Autonics Timers, model LE4S, from the LE4S Series product line.

Display method: 4-digit 7-segment LCD
Operation method: Count up, Count down
Output Operation: ON DELAY, INTERVAL, FLICKER, ON-OFF DELAY, OFF DELAY
Time operation: SIGNAL ON START
Terminal: 8-pin plug
Power supply: 24-240VAC~, 24-240VDC @(=)
External Power Supply: -
Memory Protection: -
Setting range: 0.01 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 0 min 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 0 hour 1 min to 99 hour 59 min, 0.01 hour to 99.99 hour, 0.1 hour to 999.9 hour, 1 our to 9999 ho
Signal Input Method: No-voltage input(NPN)
Control output_Relay: Time-limit SPDT (1c): 1
Control output_NPN open collector: -
Backlight: Backlight function
Protection structure: -
Min. signal Width_START: 1ms, 20ms (selectable)
Min. signal Width_INHIBIT: 1ms, 20ms (selectable)
Min. signal Width_RESET: 1ms, 20ms (selectable)
Accessories: Bracket
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85%RH
Weight: Approx. 98g
