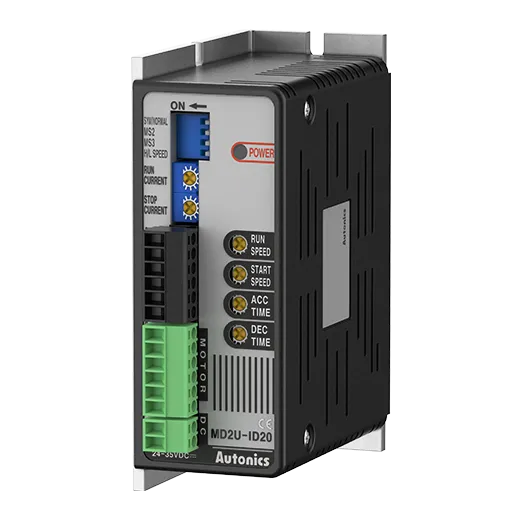

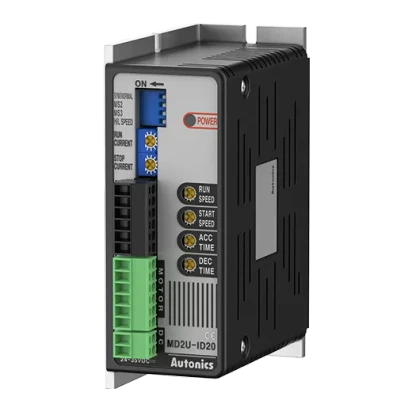

Autonics MD2 Series MD2U-ID20

Part Number #

AUT1052980

Autonics MD2 Series MD2U-ID20

List Price:

$227.00

/each

Product Description

Autonics 2-phase Stepper Motors/drivers, model MD2U-ID20, from the MD2 Series product line.

Specifications

Operation method: Unipolar constant current drive
Applied Motor: 2-phase stepper motor
Resolution: Intelligent type
Power supply: 24-35VDC @(=)
Max. Run Current: 2A/Phase
Max. Current Consumption: 3A
Output: -
Number Of Axes: 1-axis
Protection structure: -
Input pulse characteristic_pulse width: -
Input pulse characteristic_Duty Rate: -
Input pulse characteristic_Rising/Falling time: -
Input pulse characteristic_Pulse input voltage: -
Input pulse characteristic_pulse input current: -
Input pulse characteristic_Max. input pulse freq: -
Environment_Ambient temperature: 0 to 50℃, storage: -10 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 303g(approx. 190g)
