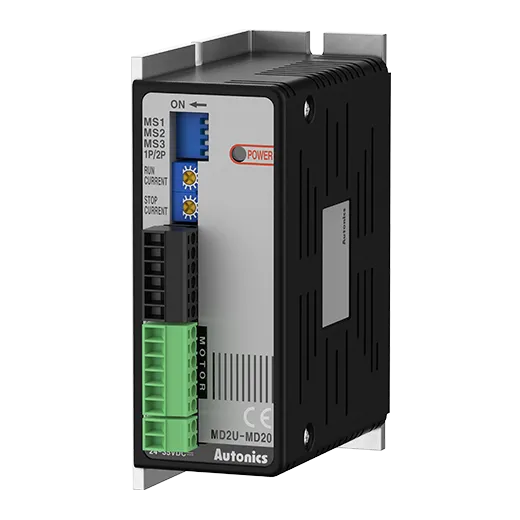

Autonics MD2 Series MD2U-MD20

List Price:

$227.00

/each

Product Description

Autonics 2-phase Stepper Motors/drivers, model MD2U-MD20, from the MD2 Series product line.

Operation method: Unipolar constant current drive
Applied Motor: 2-phase stepper motor
Resolution: FULL STEP(1-division), HALF STEP(2-division), Micro STEP(4, 5, 8, 10, 16, 20-division)
Power supply: 24-35VDC @(=)
Max. Run Current: 2A/Phase
Max. Current Consumption: 3A
Output: -
Number Of Axes: 1-axis
Protection structure: -
Input pulse characteristic_pulse width: Min. 10㎲(CW, CCW), Min. 1ms(HOLD OFF)
Input pulse characteristic_Duty Rate: 50%(CW, CCW)
Input pulse characteristic_Rising/Falling time: Max. 0.5㎲(CW, CCW)
Input pulse characteristic_Pulse input voltage: [H]: 4-8VDC @(=), [L]: 0-0.5VDC @(=)
Input pulse characteristic_pulse input current: 4mA(CW, CCW), 10mA(HOLD OFF)
Input pulse characteristic_Max. input pulse freq: Max. 50kHz(CW, CCW)
Environment_Ambient temperature: 0 to 50℃, storage: -10 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 295g(approx. 180g)
